CECCO::details::BlockProcessor< T, InputType, OutputType > Class Template Reference

CRTP base providing element-wise, vector, and matrix operator() overloads. More...

#include <blocks.hpp>

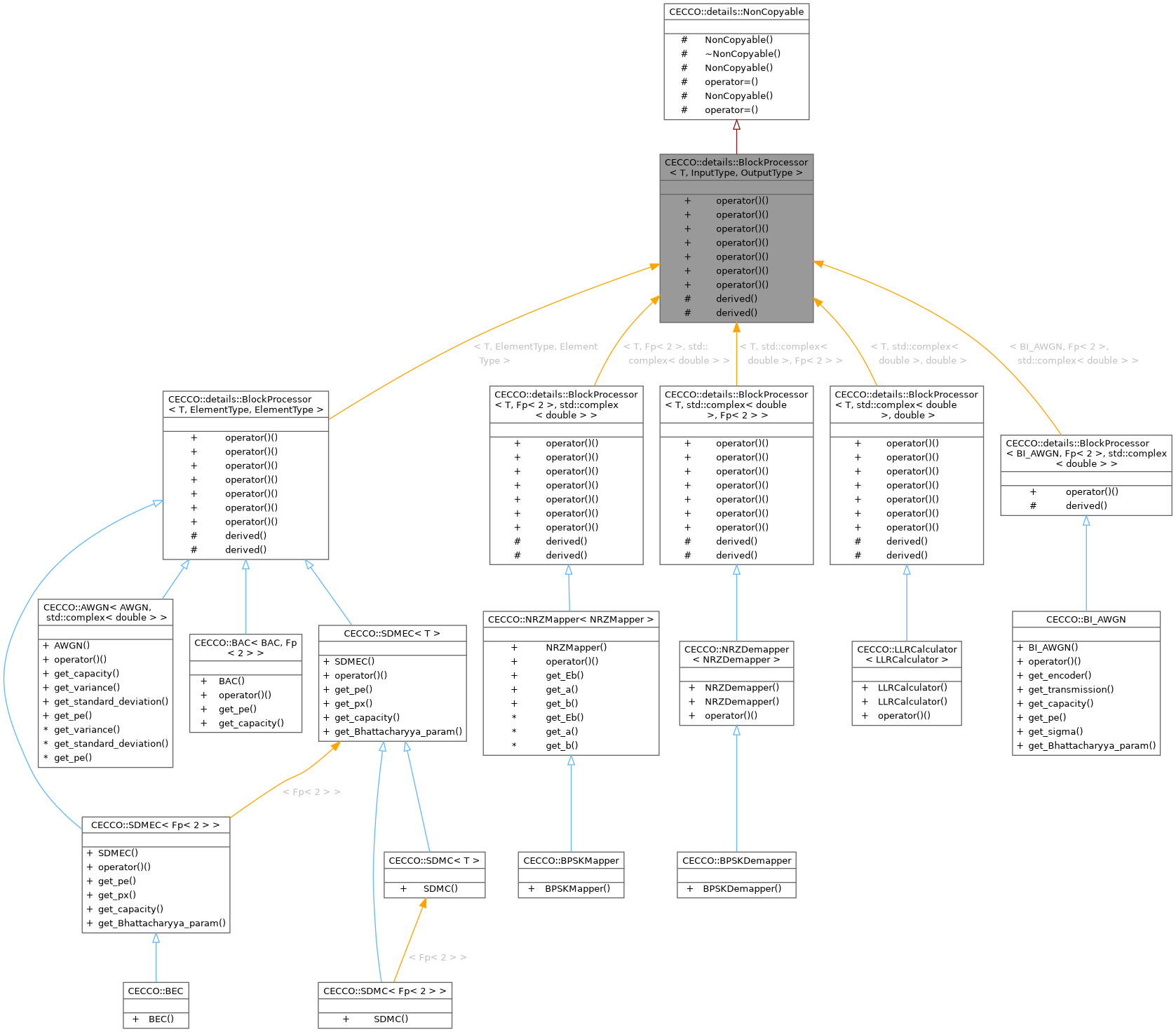

Inheritance diagram for CECCO::details::BlockProcessor< T, InputType, OutputType >:

Public Member Functions
Vector< OutputType >	operator() (const Vector< InputType > &in)
	Apply the block element-wise to each vector entry.
Vector< OutputType >	operator() (Vector< InputType > &&in)
	Apply the block element-wise (rvalue input).
Matrix< OutputType >	operator() (const Matrix< InputType > &in)
	Apply the block element-wise to each matrix entry.
Matrix< OutputType >	operator() (Matrix< InputType > &&in)
	Apply the block element-wise (rvalue input).
template<FiniteFieldType U>
OutputType	operator() (const U &)
	Catch-all for inputs whose element type differs from InputType.
template<FiniteFieldType U>
Vector< OutputType >	operator() (const Vector< U > &)
template<FiniteFieldType U>
Matrix< OutputType >	operator() (const Matrix< U > &)

Protected Member Functions
const T &	derived () const noexcept
T &	derived () noexcept

Detailed Description

template<typename T, typename InputType, typename OutputType>
class CECCO::details::BlockProcessor< T, InputType, OutputType >

CRTP base providing element-wise, vector, and matrix operator() overloads.

Template Parameters

T	Derived class (CRTP)
InputType	Element type accepted by the block
OutputType	Element type produced by the block

Derived blocks implement a single-element operator()(const InputType&); this base then generates Vector<OutputType> operator()(const Vector<InputType>&) and the matrix counterpart (plus rvalue versions, with in-place reuse when InputType == OutputType).

Catch-all overloads accept any other CECCO::FiniteFieldType and throw at runtime — useful inside if constexpr (std::is_same_v<F, InputType>) guards in non-template contexts, where the discarded branch must still compile.

Vector<Fp<2>> message = {1, 0, 1, 1};
BPSKMapper map;
AWGN awgn(6.0, map.get_a(), map.get_b());
BPSKDemapper demap;

Vector<Fp<2>> r;
message >> map >> awgn >> demap >> r;

Definition at line 86 of file blocks.hpp.

Member Function Documentation

derived() [1/2]

template<typename T, typename InputType, typename OutputType>

const T & CECCO::details::BlockProcessor< T, InputType, OutputType >::derived ( ) const

inlineprotectednoexcept

Definition at line 88 of file blocks.hpp.

derived() [2/2]

template<typename T, typename InputType, typename OutputType>

T & CECCO::details::BlockProcessor< T, InputType, OutputType >::derived ( )

inlineprotectednoexcept

Definition at line 90 of file blocks.hpp.

operator()() [1/7]

template<typename T, typename InputType, typename OutputType>

Matrix< OutputType > CECCO::details::BlockProcessor< T, InputType, OutputType >::operator() ( const Matrix< InputType > & in )

inline

Apply the block element-wise to each matrix entry.

Parameters

in	Input matrix

Returns

Matrix of processed outputs

Definition at line 121 of file blocks.hpp.

operator()() [2/7]

template<typename T, typename InputType, typename OutputType>

template<FiniteFieldType U>

Matrix< OutputType > CECCO::details::BlockProcessor< T, InputType, OutputType >::operator() ( const Matrix< U > & )

inline

Definition at line 172 of file blocks.hpp.

operator()() [3/7]

template<typename T, typename InputType, typename OutputType>

template<FiniteFieldType U>

OutputType CECCO::details::BlockProcessor< T, InputType, OutputType >::operator() ( const U & )

inline

Catch-all for inputs whose element type differs from InputType.

Template Parameters

U	Any CECCO::FiniteFieldType other than InputType

Always throws std::logic_error at runtime. See the class doc for the if constexpr use case that motivates these overloads.

Definition at line 160 of file blocks.hpp.

operator()() [4/7]

template<typename T, typename InputType, typename OutputType>

Vector< OutputType > CECCO::details::BlockProcessor< T, InputType, OutputType >::operator() ( const Vector< InputType > & in )

inline

Apply the block element-wise to each vector entry.

Parameters

in	Input vector

Returns

Vector of processed outputs

Definition at line 98 of file blocks.hpp.

operator()() [5/7]

template<typename T, typename InputType, typename OutputType>

template<FiniteFieldType U>

Vector< OutputType > CECCO::details::BlockProcessor< T, InputType, OutputType >::operator() ( const Vector< U > & )

inline

Definition at line 166 of file blocks.hpp.

operator()() [6/7]

template<typename T, typename InputType, typename OutputType>

Matrix< OutputType > CECCO::details::BlockProcessor< T, InputType, OutputType >::operator() ( Matrix< InputType > && in )

inline

Apply the block element-wise (rvalue input).

Parameters

in	Input matrix (moved)

Returns

Matrix of processed outputs (reuses input storage when InputType == OutputType)

Definition at line 134 of file blocks.hpp.

operator()() [7/7]

template<typename T, typename InputType, typename OutputType>

Vector< OutputType > CECCO::details::BlockProcessor< T, InputType, OutputType >::operator() ( Vector< InputType > && in )

inline

Apply the block element-wise (rvalue input).

Parameters

in	Input vector (moved)

Returns

Vector of processed outputs

Definition at line 109 of file blocks.hpp.

---

The documentation for this class was generated from the following file:

• blocks.hpp
