BPSK hard-decision demapper — NRZDemapper with threshold 0. More...

#include <blocks.hpp>

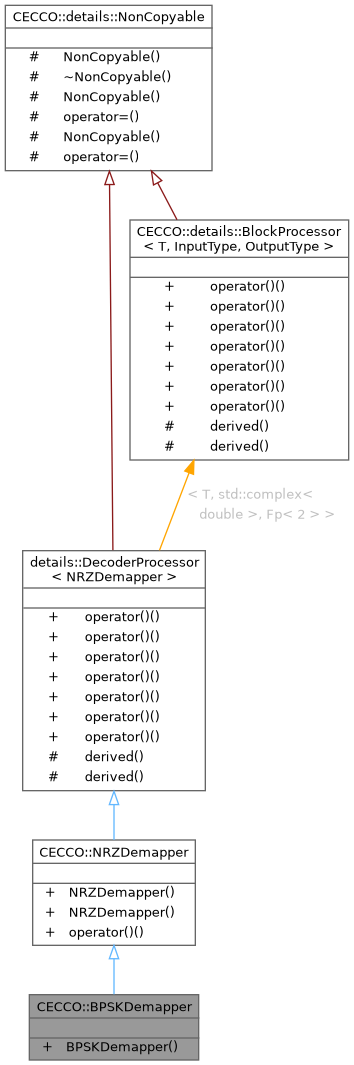

Inheritance diagram for CECCO::BPSKDemapper:

Public Member Functions
constexpr	BPSKDemapper () noexcept
	Construct BPSK demapper (threshold 0).
Public Member Functions inherited from CECCO::NRZDemapper
constexpr	NRZDemapper (const NRZMapper &nrz) noexcept
	Construct from the corresponding mapper.
	NRZDemapper (const BI_AWGN &bi_awgn) noexcept
	Construct from a BI-AWGN channel (convenience).
constexpr Fp< 2 >	operator() (const std::complex< double > &in) noexcept
	Hard-decide a received symbol.
Public Member Functions inherited from CECCO::details::BlockProcessor< T, std::complex< double >, Fp< 2 > >
Vector< Fp< 2 > >	operator() (const Vector< std::complex< double > > &in)
	Apply the block element-wise to each vector entry.
Vector< Fp< 2 > >	operator() (Vector< std::complex< double > > &&in)
	Apply the block element-wise (rvalue input).
Matrix< Fp< 2 > >	operator() (const Matrix< std::complex< double > > &in)
	Apply the block element-wise to each matrix entry.
Matrix< Fp< 2 > >	operator() (Matrix< std::complex< double > > &&in)
	Apply the block element-wise (rvalue input).
Fp< 2 >	operator() (const U &)
	Catch-all for inputs whose element type differs from InputType.
Vector< Fp< 2 > >	operator() (const Vector< U > &)
Matrix< Fp< 2 > >	operator() (const Matrix< U > &)

Additional Inherited Members
Protected Member Functions inherited from CECCO::details::BlockProcessor< T, std::complex< double >, Fp< 2 > >
const T &	derived () const noexcept
T &	derived () noexcept
