CECCO::SDMC< T > Class Template Reference

Symmetric Discrete Memoryless Channel — errors only, no erasures. More...

#include <blocks.hpp>

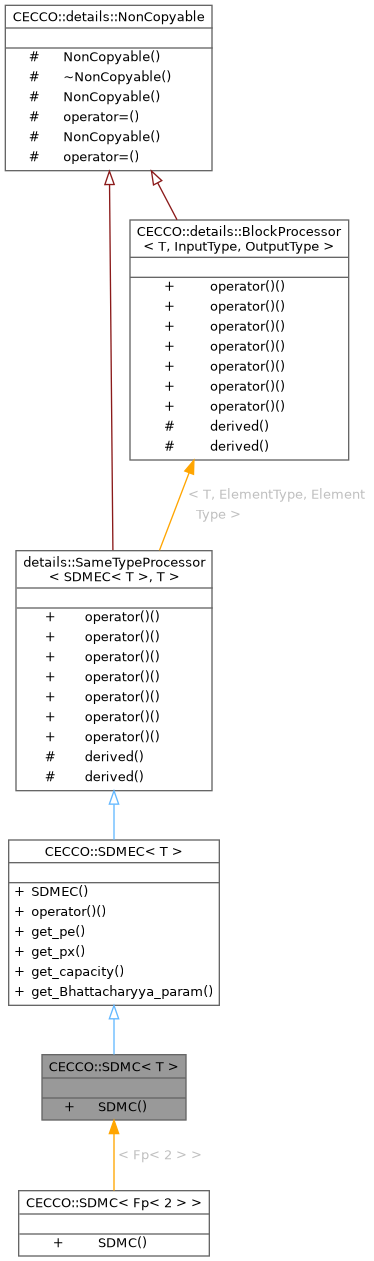

Inheritance diagram for CECCO::SDMC< T >:

Public Member Functions
	SDMC (double pe)
	Construct with symbol error probability pe.
Public Member Functions inherited from CECCO::SDMEC< T >
	SDMEC (double pe, double px=0.0)
	Construct with error probability pe and erasure probability px.
T	operator() (const T &in)
	Process one symbol.
double	get_pe () const noexcept
	Observed symbol error probability pe.
double	get_px () const noexcept
	Observed symbol erasure probability px.
double	get_capacity () const noexcept
	Shannon capacity in bits per symbol.
long double	get_Bhattacharyya_param () const
	Bhattacharyya parameter γ = 2·√(pe·(1 − pe)).
Public Member Functions inherited from CECCO::details::BlockProcessor< T, ElementType, ElementType >
Vector< ElementType >	operator() (const Vector< ElementType > &in)
	Apply the block element-wise to each vector entry.
Vector< ElementType >	operator() (Vector< ElementType > &&in)
	Apply the block element-wise (rvalue input).
Matrix< ElementType >	operator() (const Matrix< ElementType > &in)
	Apply the block element-wise to each matrix entry.
Matrix< ElementType >	operator() (Matrix< ElementType > &&in)
	Apply the block element-wise (rvalue input).
ElementType	operator() (const U &)
	Catch-all for inputs whose element type differs from InputType.
Vector< ElementType >	operator() (const Vector< U > &)
Matrix< ElementType >	operator() (const Matrix< U > &)

Additional Inherited Members
Protected Member Functions inherited from CECCO::details::BlockProcessor< T, ElementType, ElementType >
const T &	derived () const noexcept
T &	derived () noexcept

Detailed Description

template<FieldType T>
class CECCO::SDMC< T >

Symmetric Discrete Memoryless Channel — errors only, no erasures.

Template Parameters

T	Finite field type for channel input/output symbols

Convenience wrapper for SDMEC<T>(pe, 0.0) with a single-parameter constructor.

See also

CECCO::SDMEC for the full errors-and-erasures channel

CECCO::BSC for the binary case

Definition at line 354 of file blocks.hpp.

Constructor & Destructor Documentation

SDMC()

template<FieldType T>

CECCO::SDMC< T >::SDMC ( double pe )

inline

Construct with symbol error probability pe.

Parameters

pe	Symbol error probability ∈ [0, 1]

Definition at line 360 of file blocks.hpp.

---

The documentation for this class was generated from the following file:

• blocks.hpp
